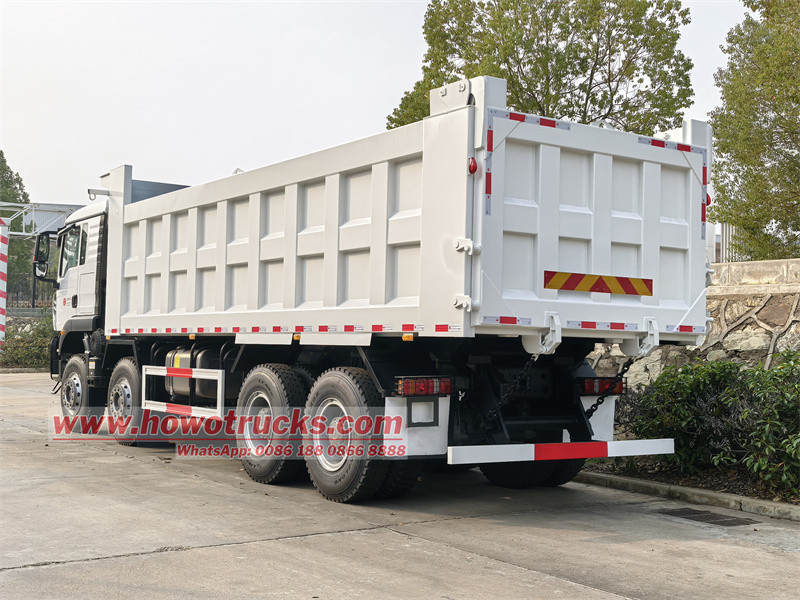

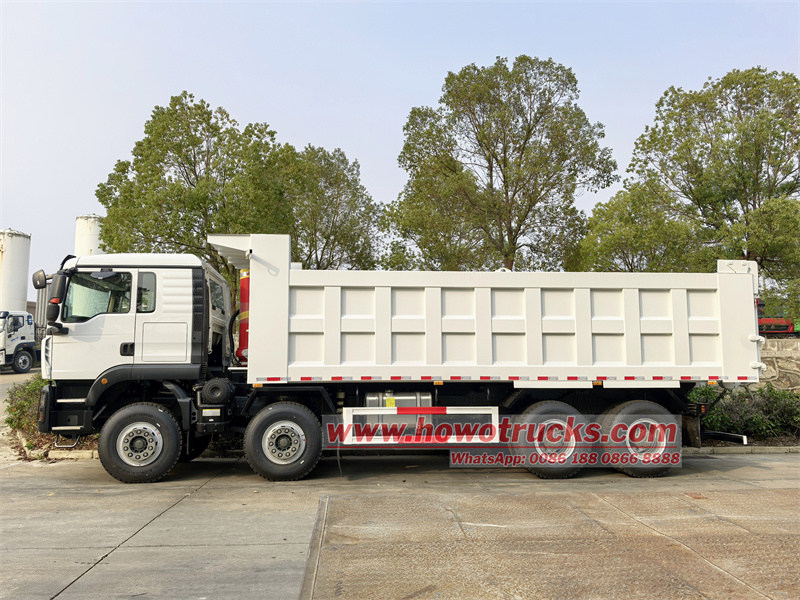

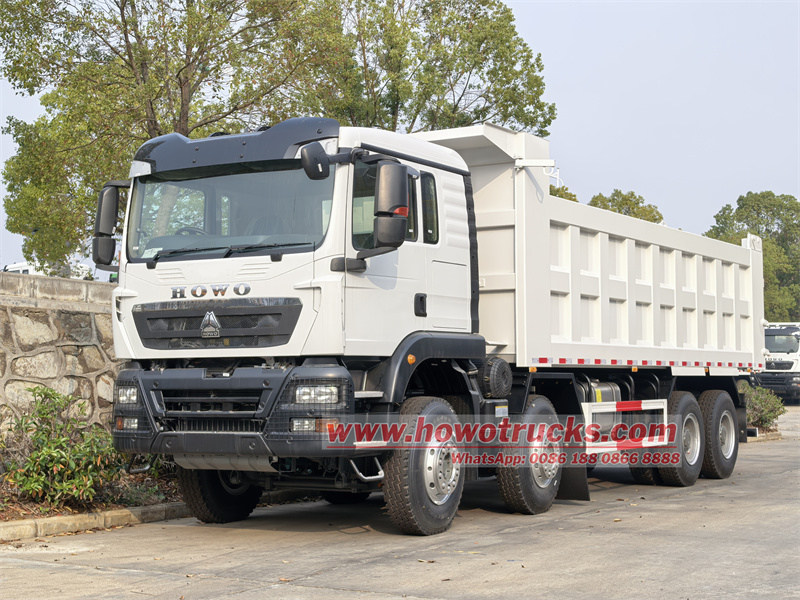

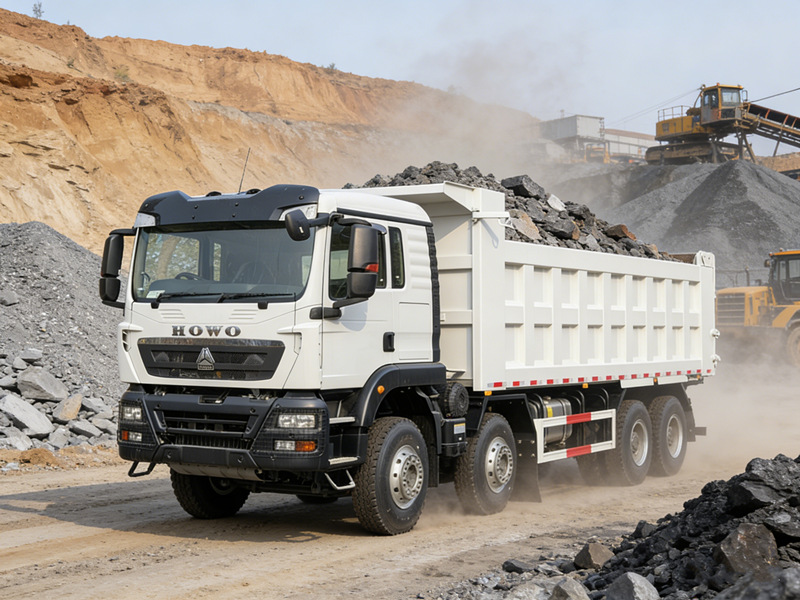

The Howo 8x4 30-ton dump truck adopts a Sinotruk Howo TX 371HP right-hand drive chassis with a wheelbase of 1800+3825+1350mm, a Sinotruk WD615.47 engine, and an HW19710 transmission. The superstructure is a heavy-duty dump body with dimensions of 7200x2400x1500mm, made of carbon steel with 6mm thick sides and 8mm thick bottom. The tailgate can be opened, the side panels have a grid pattern and are fully welded, and it has a front-mounted hydraulic lift with a lifting angle ≥ 45°.
Çalışma kapasitesi :
30tonsKabin tipi :
Howo TX-F one and half row cabinTahrik sistemi :
8x4,RHDDingil mesafesi (mm) :
1800+3825+1350mmMotora özel :
371 HP / Sinotruk WD615.47Dişli kutusu :
Sinotruk HW19710 transmission, manualÖn aks (kg) :
6500/7000Arka aks (kg) :

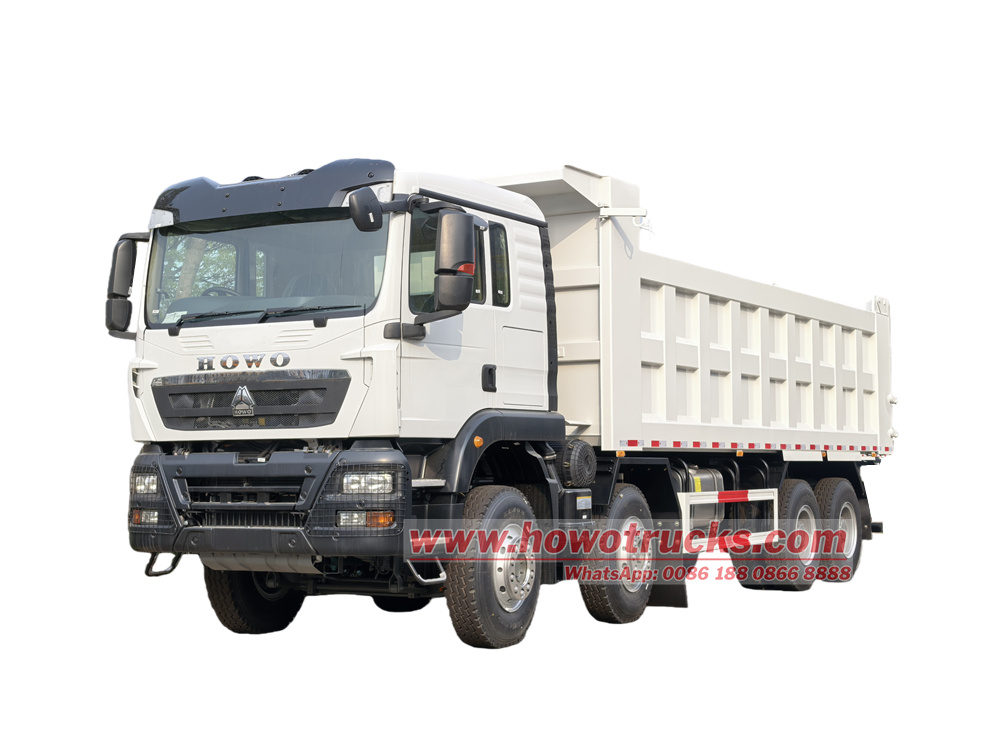

17500(2 axles)The Tanzania HOWO 12 wheeler construction dump truck is an engineering vehicle specifically designed for heavy-duty transportation in Tanzania's mining and infrastructure sectors. It utilizes a powerful Sinotruk 371HP engine, features a large cargo box with robust construction and full welding, ensuring high load-bearing capacity and clean unloading. It meets the needs of transporting high-strength sand, gravel, earth, and mineral materials. The entire vehicle is heavy-duty, sturdy, and durable, capable of carrying up to 30 tons.
◆ Product Technological Parameters:
|
HOWO TX RHD 8x4 dump truck |
|||
|
Vehicle parameters |
|||
|

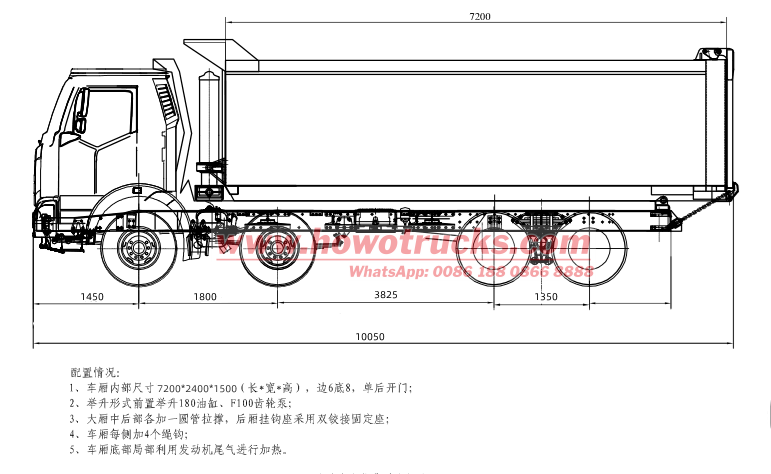

Overall dimensions |
10050×2550×3400mm |
GVW/Curb weight |
31000 /16850kg |
|
Dump body dimensions |
7200×2400×1500mm |
Loading capacity |
30tons |
|
Chassis parameters |
|||
|
Chassis brand |
HOWO TX |
Wheel base |
1800+3825+1350mm |
|
Drive type |
8x4,RHD |
Maximum speed |
89km/h |
|
Cab |
Configuration |
HOWO TX-F cab, RHD steering gear |
|
|
Color |
White,other color is optional |
||
|
Engine |
Model |
SINOTRUK WD615.47 |
|
|
Emission |
Euro 2 |
||
|
Type |
6 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve , |
||
|
Horse power |
371HP/ 273kW |
||
|
Displacement |
9.726L |
||
|
Max torque |
1500N.m |
||
|
Tire |
Size |
12.00R20 |
|
|
Number |
12+1 nos |
||
|
Transmissions |
HW19710 transmission, 10 speed forward 2 reverse. |
||
|
Dump truck structure parameters |
|||
|
Dump body dimensions |
7200×2400×1500mm |
Material |
Carbon steel |
|
Thickness |
Side 6mm bottom 8mm |
Lifting position |
Front lifting |
|
Lifting angle |
≥45° |
Color and Logo |
Optional |
◆ Chassis:
• Drive Type: 8×4 heavy-duty drive, rated load capacity 30 tons

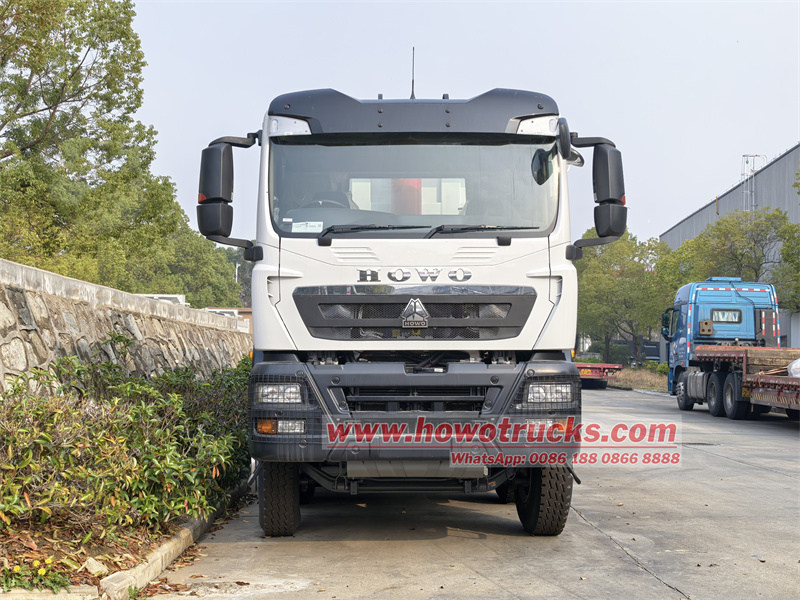

• Cab: Right-hand drive layout, Howo TX cab
• Wheelbase: 1800+3825+1350mm
• Powertrain: Sinotruk WD615.47 inline six-cylinder diesel engine, 371HP high horsepower output, maximum torque 1500N.m
• Transmission System: HW19710 ten-speed gearbox
• Tires: 12.00R20, 12+1 tires
• Dump Body Type: Heavy-duty self-unloading cargo box
• External Dimensions: 7200×2400×1500mm, meeting the needs of transporting large quantities of bulk materials such as sand, gravel, ore, and coal.
• Box Material: High-strength carbon steel, with 6mm thickened side plates and 8mm thickened bottom plates for wear resistance and impact resistance.
• Structural Process: Side plates feature a grid-like reinforcing rib design, fully welded for resistance to expansion and deformation.

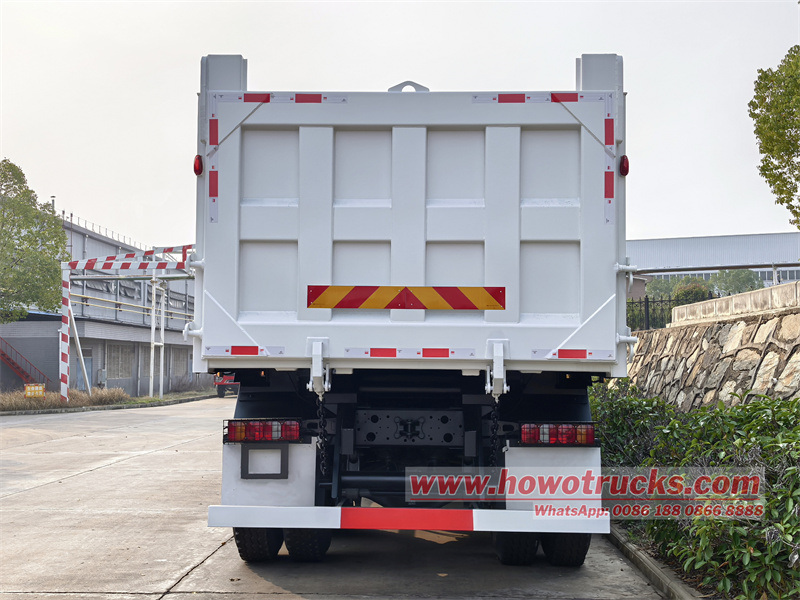

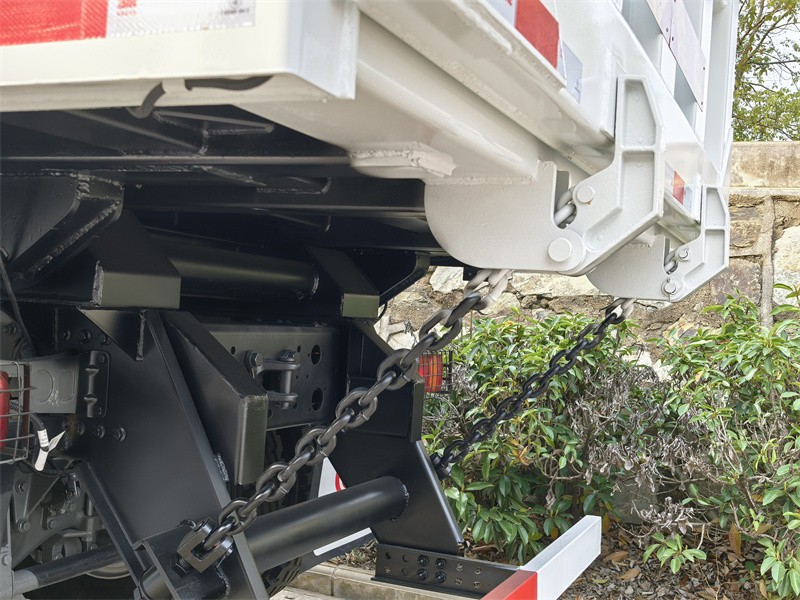

• Tailgate Design: Flexible opening with a locking mechanism.

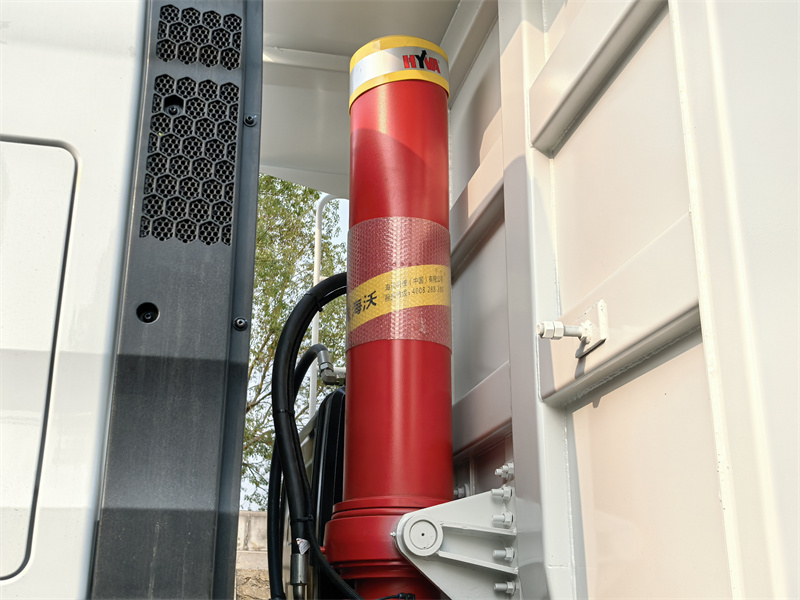

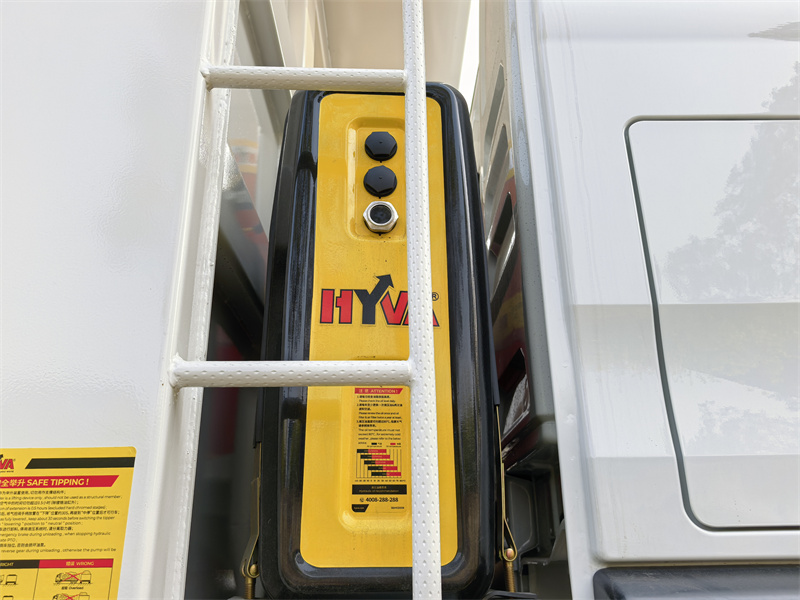

• Lifting System: Front-mounted Hyva hydraulic lifting mechanism with a lifting angle greater than 45°, ensuring clean and thorough unloading and smooth, powerful lifting.

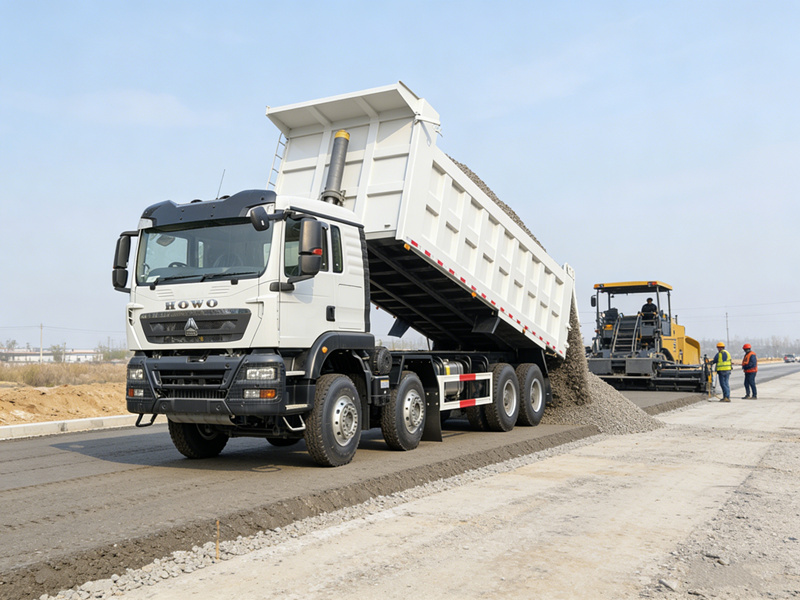

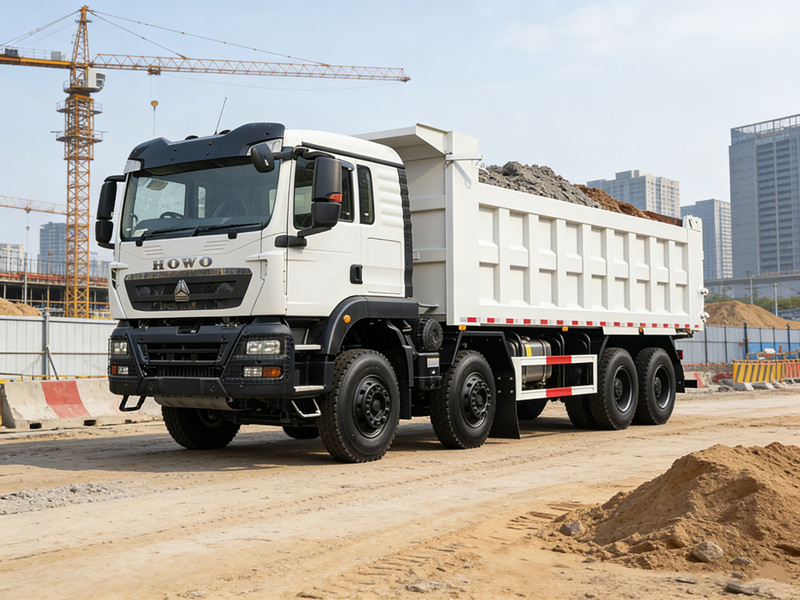

◆ Applications in Tanzania:
• Mining: Transporting heavy materials such as ore and slag.
• Infrastructure Construction: Short-distance transshipment of sand, gravel, and concrete raw materials.
• Logistics and Transportation: Bulk cargo distribution between urban and rural areas.
• Municipal Engineering: Road maintenance, earthwork removal, etc.
