HOWO 371HP Debris Vacuum Suction Pump Truck

HOWO 371HP Debris Vacuum Suction Pump Truck

The HOWO 371HP Debris Vacuum Suction Pump Truck designed for efficiency, durability, and adaptability, it is the go-to choice for cities seeking reliable solutions for underground pipeline maintenance and waste management.Equipped with the high-quality WD615.47 engine, this truck delivers an impressive 371 horsepower, paired with a robust vacuum suction system that excels in tackling complex scenarios.

  • Çalışma kapasitesi :

    20000 liters
  • Kabin tipi :

    HOWO single cabin with sleeper and A/C
  • Tahrik sistemi :

    6×4
  • Dingil mesafesi (mm) :

    10300*2580*3250 mm
  • Motora özel :

    371HP/WD615.47
  • Dişli kutusu :

    HW19710, 10 Forward & 2Reverse
  • Ön aks (kg) :

    7.5T
  • Arka aks (kg) :

    13 T*2
Yeni Ürünler

The HOWO 371HP Debris Vacuum Suction Pump Truck designed for efficiency, durability, and adaptability, it is the go-to choice for cities seeking reliable solutions for underground pipeline maintenance and waste management.Equipped with the high-quality WD615.47 engine, this truck delivers an impressive 371 horsepower, paired with a robust vacuum suction system that excels in tackling complex scenarios.

Whether it’s unclogging sewers, cleaning septic tanks, or removing debris from underground pipelines, the powerful suction capability ensures fast, thorough results—saving you time and labor costs. With a large 20 CBM tank capacity, it minimizes the need for frequent emptying, significantly boosting work efficiency even during long-hour operations.

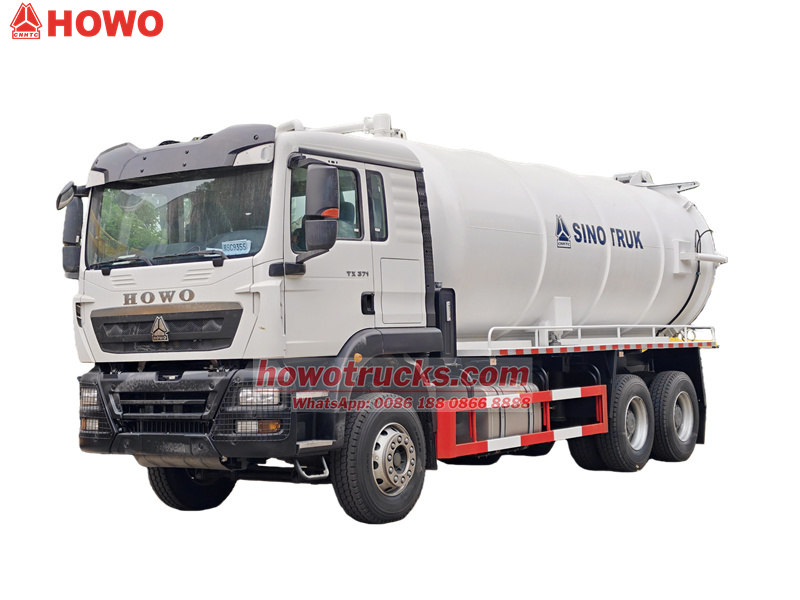

HOWO 6x4 sewage tank truck



*HOWO 6x4 Heavy Sewage Tanker Truck

 SINOTRUK HOWO 20000L Vacuum Sewage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO heavy truck chassis, 6X4 or 6x6 model

                              WD model with 371HP and Euro 2,3



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Vacuum Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
                              Optional famous Imported
pump

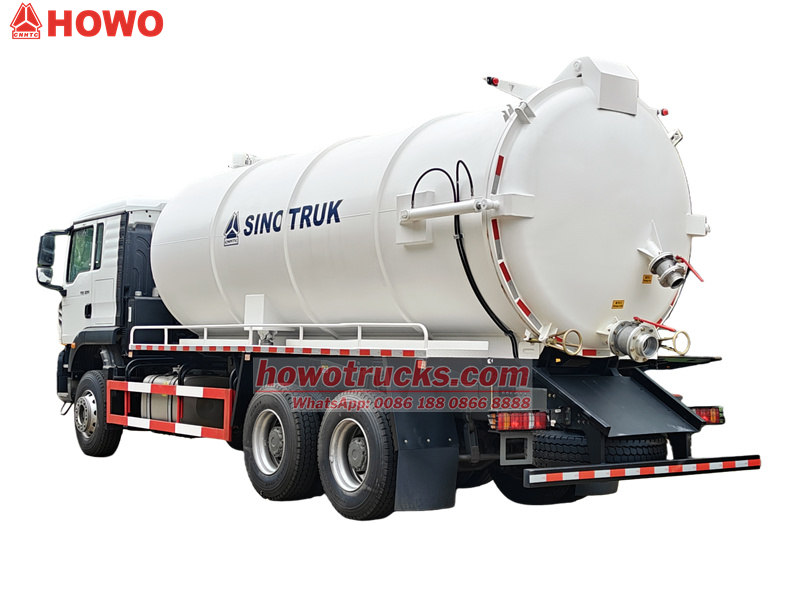

Howo 6x4 sewage tank truck



Ⅱ.Parameter for Howo Vacuum Suction Pump Truck «««



Howo 6x4 heavy sewage tank truck





Howo heavy 20000L septic tanker truck

Vehicle Description

Overall dimensions

10300*2530*3150mm

GVW

2500kg

Curb weight

12350kg

Sewage tank (m3)

20

Drive system

6*4

Chassis Description

Chassis brand

Howo

Steering

LHD

Cab

Howo,single row, 2 seats,with A/C

Wheelbase

4600+1350 mm

Tire specification

12.00 R 20

Tire quantity

10 tires and 1 spare tire

Engine

Engine model

WD615.47

Emission level

EURO 2

Displacement

10L

Horse power

371HP

Weight

1360Kg

Fuel

Diesel

Gear box

Model

HW19710

Number of gears

10-speed

Brake system

Air break

Axle

Front

7.5T

Rear

13T*2

Fuel tanker

Type

Stainless steel

Capacity

400L

Tanker Description

Tanker



Capacity

20000 Liters

Material

6mm thickness, high quality carbon steel

Structure

Welding, vacuum tank, Cylindrical

Pump



Type

vacuum pump

Brand(Model)

JUROP (PNR 155 D)

Flux

88(L/S)

Max speed

1150 (r.p.m)

Max pressure

2 Bars

Features

Low speed, low fuel consumption, low noise, high vacuum, high efficiency

Pipe

Suction and discharge pipe

Special function

Suction time ≤ 5min,

effective suction range ≥ 8,

Max vacuum degree ≤ 15 KPa,

dump angle ≥ 45°

Standard configuration

Equipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.

Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

Optional configuration

Tanker material: stainless steel.

Vacuum pump : China or Spain vacuum pumps.

Anti-rust coating inside tank



Howo heavy 20CBM vacuum sewage tank truck



Ⅲ.Sewage Tank Manufacturing Feature «««

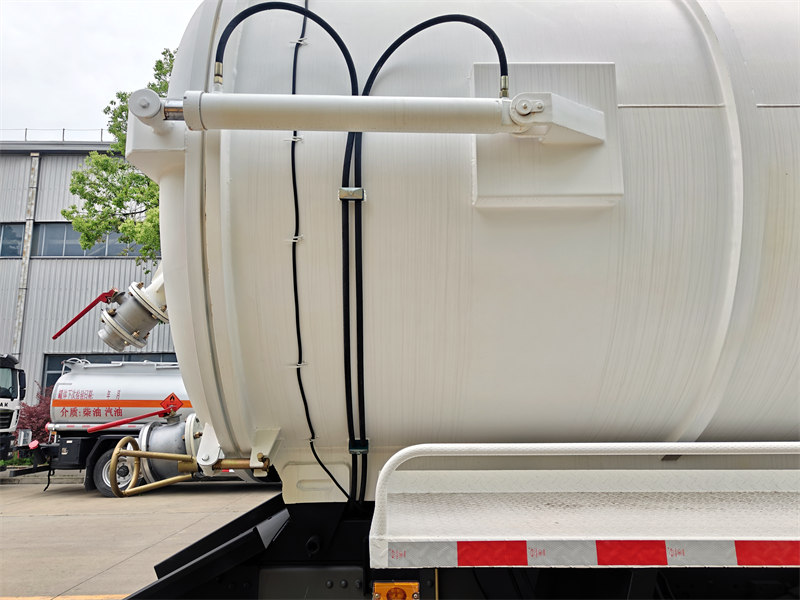

HOWO 20000L sewage tank truck

 Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating).

Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm.

Sandblasting and rust removal, spray anti-rust primer + polyurethane topcoat.

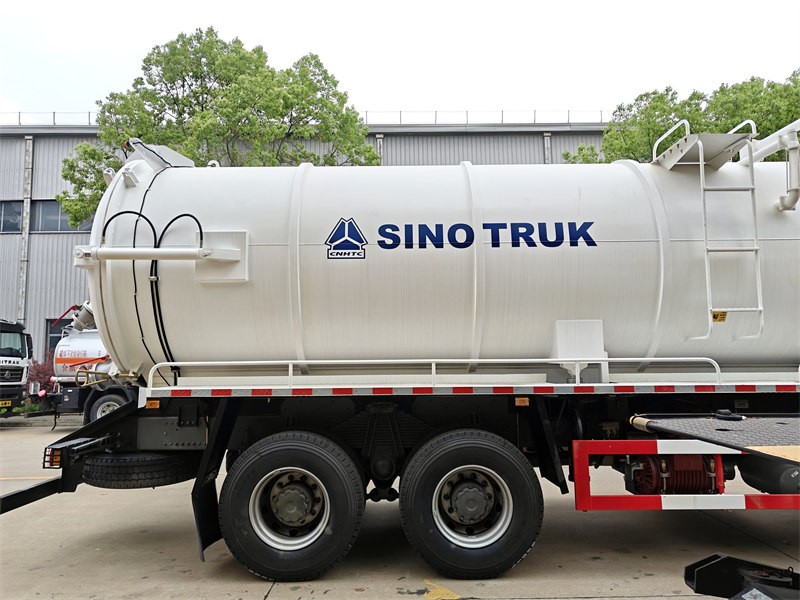

HOWO 20000L sewage tank truck

♦ The tank body welding use argon arc welding or laser welding.

Annealing treatment is required after welding to eliminate welding stress.

The weld pass flaw detection (X-ray or ultrasonic testing).

Wave breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing.



✦Ⅳ.Suction Capacity and Sealing Performance «««



1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

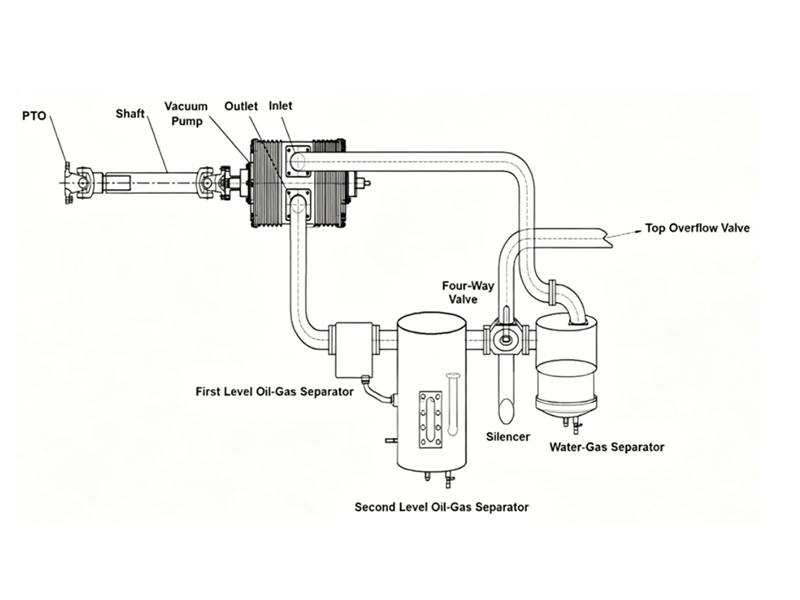

vacuum pump truck





JUROP (PNR 155D) rotary vacuum pump

Specification

Unit

Value

Free air capacity

cfm

424

Air capacity at 15" Hg/50% vacuum

cfm

312

Max. Vacuum

Hg (in.)

28

Continuous Duty Vacuum

Hg (in.)

18

Max. Pressure

psig

29

Power required at 15" of vacuum

hp

15.5

Power required at max. pressure

hp

41

Rotation speed

rpm

1150

Oil tank capacity

quart(us)

4

Suggested Tank Size

Gallons

1000-4000

Oil consumption

gal (US)/Hr

0.05

Sound pressure at 7 meters (23 ft) 60% vacuum

dB

79

Hose

in

3

Flange

in

-

Weight

lbs

357







vacuum pump truck

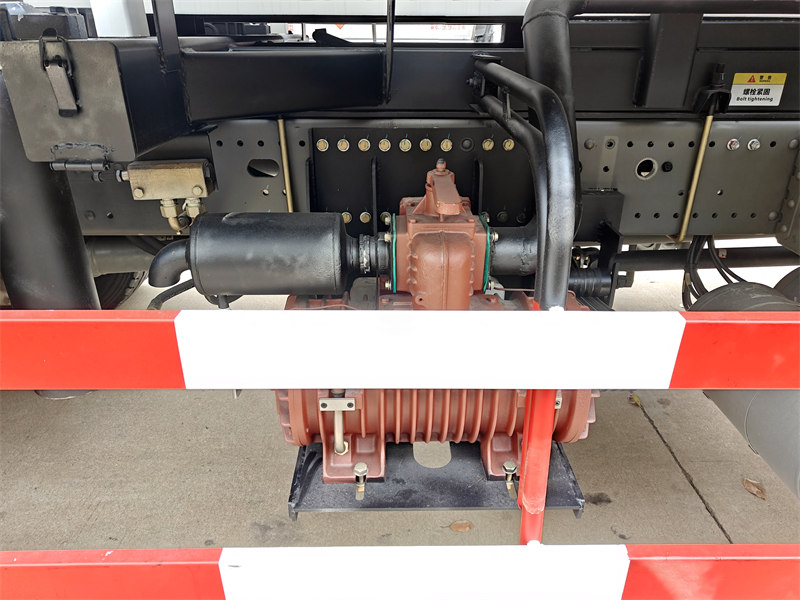

  • HOWO vacuum pump sewage truck

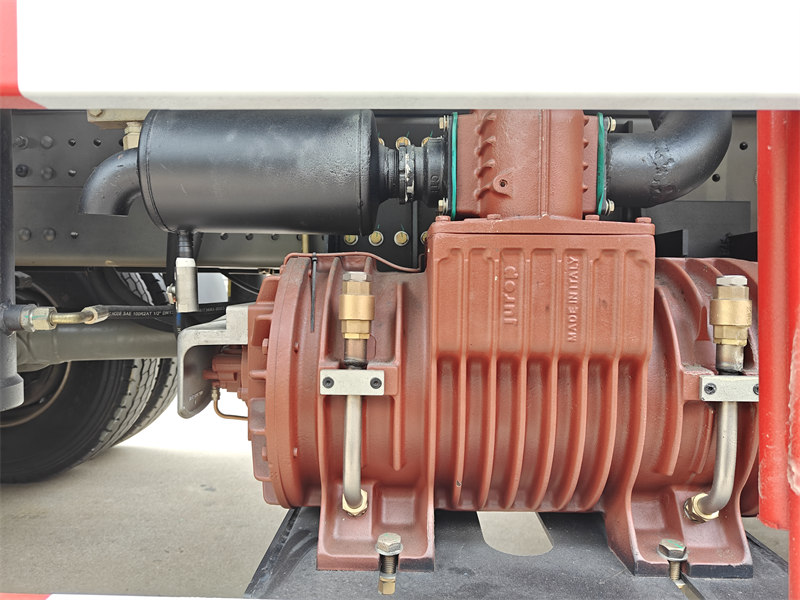

  • HOWO vacuum pump sewage truck

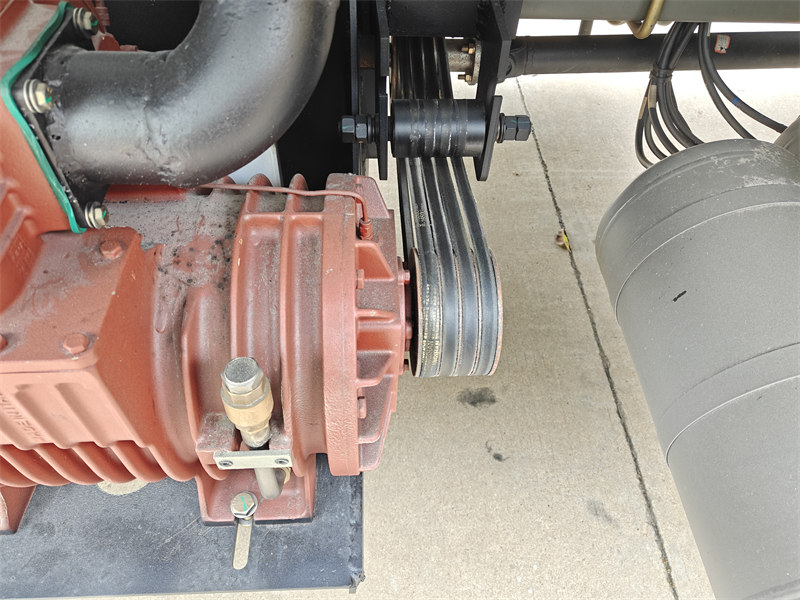

  • HOWO vacuum pump sewage truck



✦Ⅴ.Application For Howo Heavy TX Sewage Tank Truck «««



The Sinotruk HOWO rear dual-axle sewage suction truck boasts four core performance features: strong negative pressure suction, heavy-duty large capacity, corrosion-resistant sealed tank, and heavy-duty off-road chassis. It covers three core scenarios: municipal sanitation, industrial plants, and rural emergency response, making it a versatile and multi-functional sewage transportation equipment suitable for all working conditions.

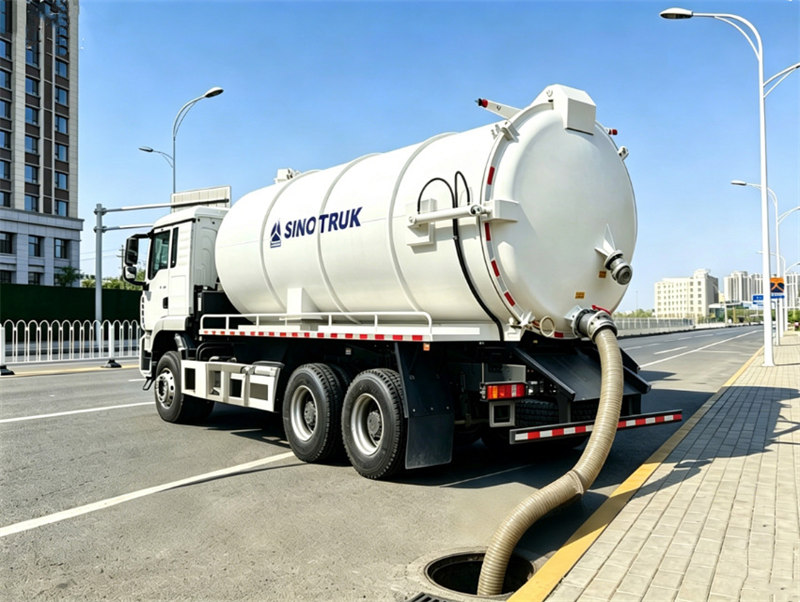

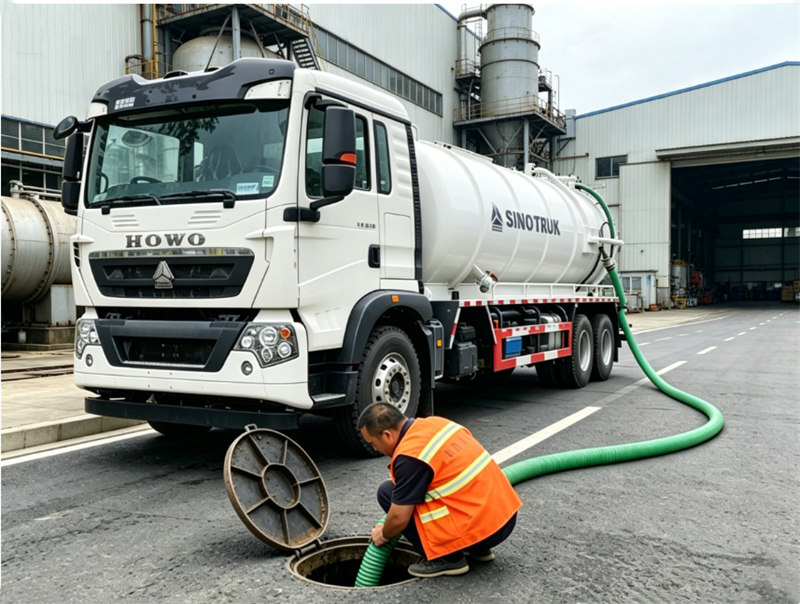

Howo TX vacuum sewage tank truck



Howo TX vacuum sewage tank truck






The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

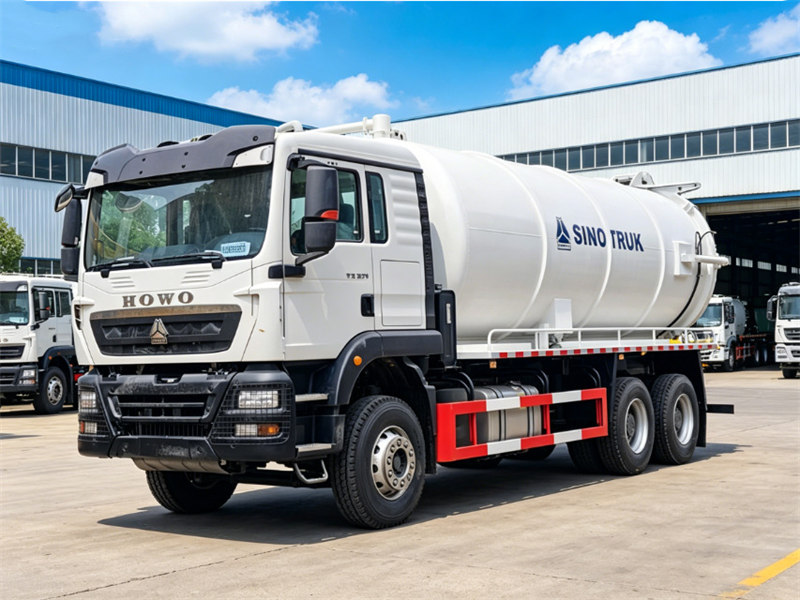

Howo 20000L sewage vacuum tank truck



Howo 20000L sewage vacuum tank truck
