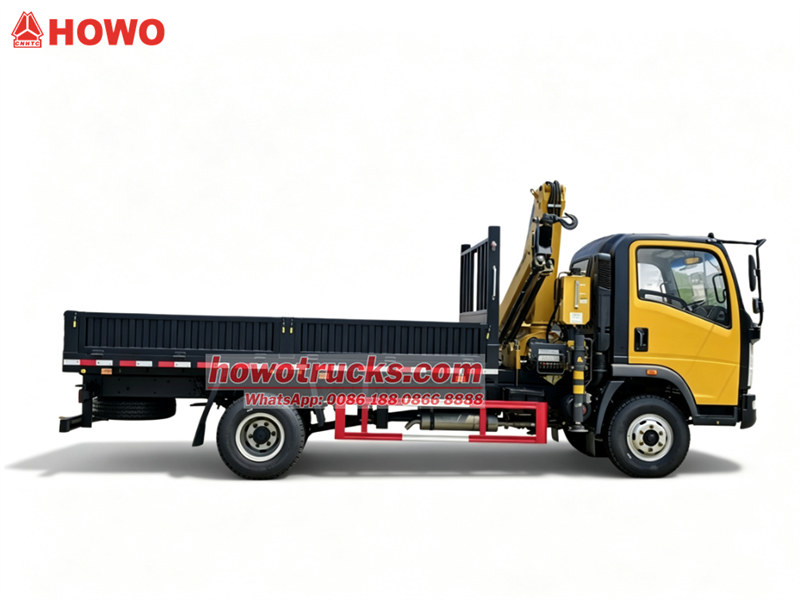

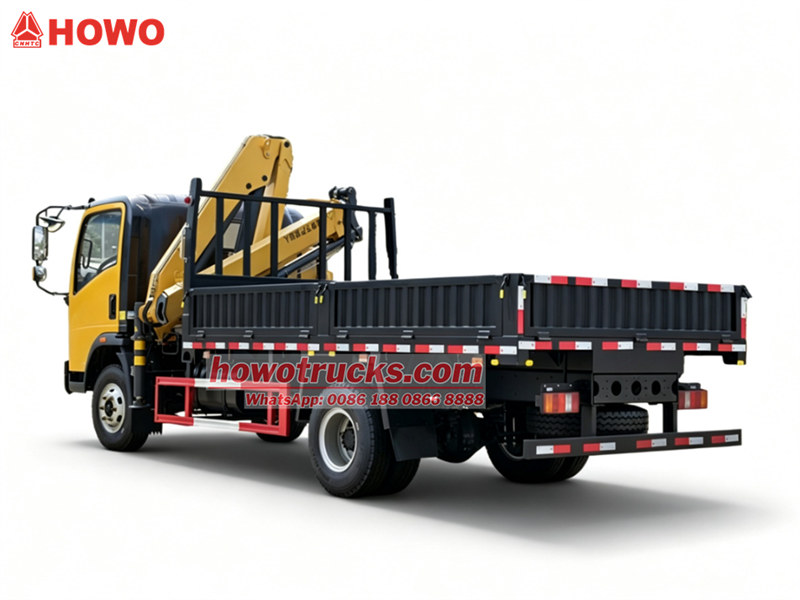

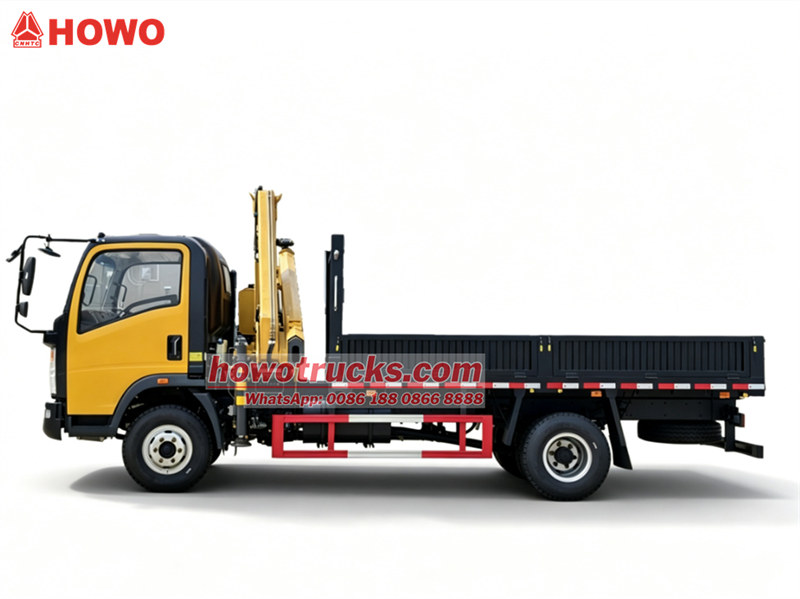

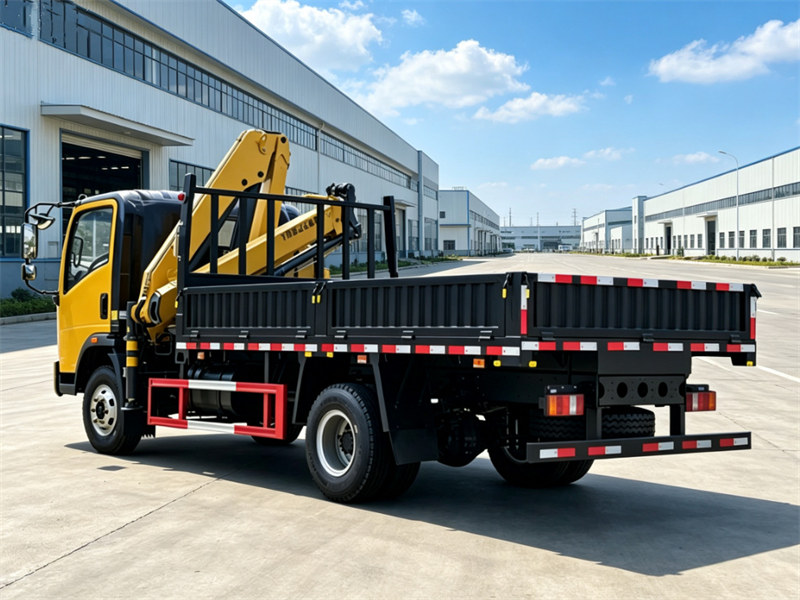

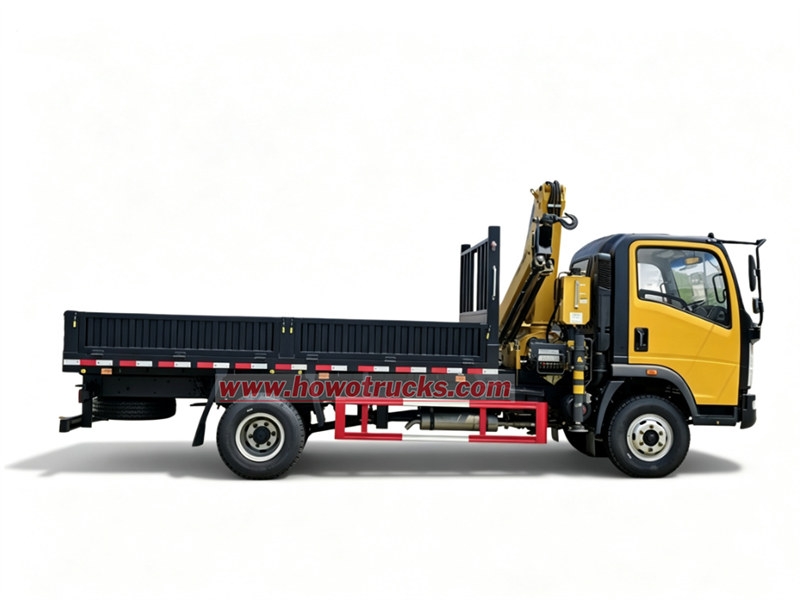

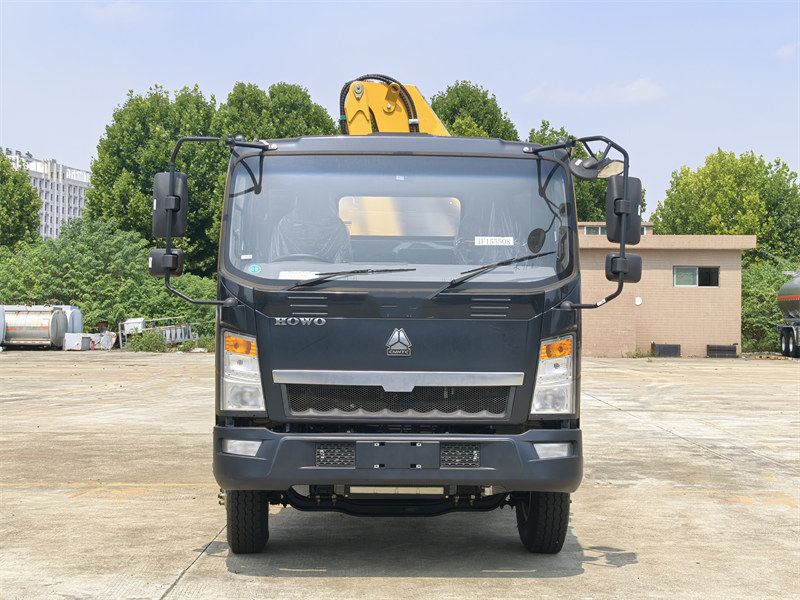

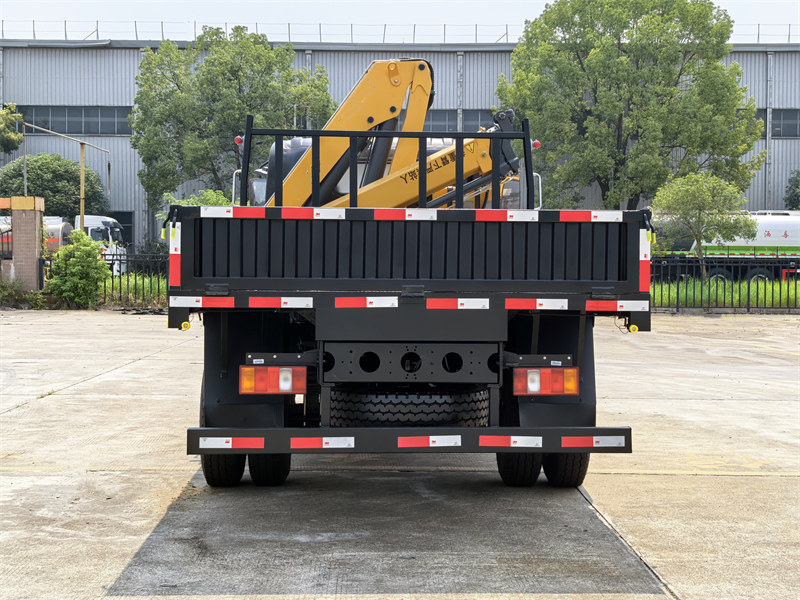

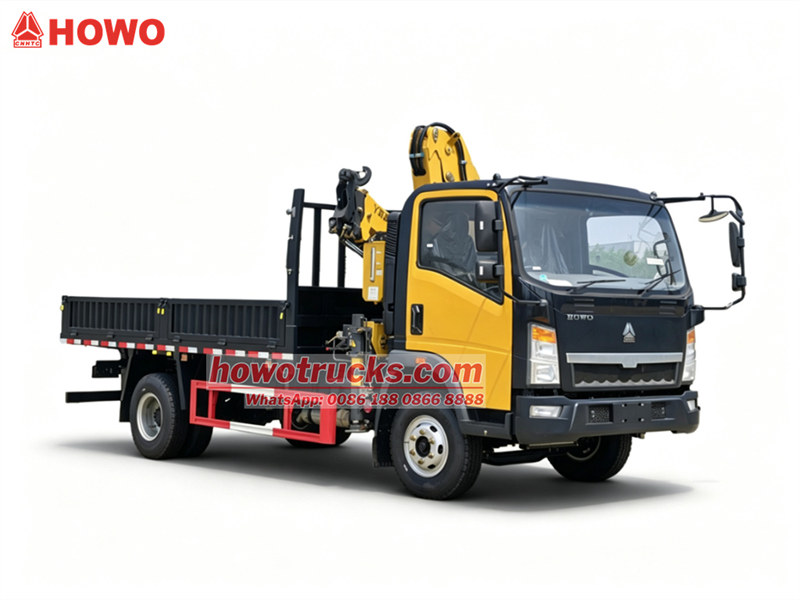

The HOWO 4×2 5T knuckle crane truck blends brute strength and smart practicality.Beneath the hood lies a 140 HP Yuchai diesel engine, capable of tackling all kinds of construction and hauling jobs. The three-person HOWO cab features full heating & cooling AC to keep operators comfortable all day long.Its foldable knuckle crane lifts up to 5 tons and rotates a full 360 degrees for flexible loading & unloading. Weighing 1700 kg with a 750mm installation footprint, it installs effortlessly on truck frames. The control system supports English and other languages, friendly for international users worldwide.
Çalışma kapasitesi :
10 tonsKabin tipi :
HOWO single cabin, with one sleeperTahrik sistemi :
4x2Dingil mesafesi (mm) :
3800Motora özel :
YC4E140-33Dişli kutusu :
WLY6TS55, 6 forwards & 1 reversesÖn aks (kg) :
4500Arka aks (kg) :
7500The HOWO 4×2 5T knuckle crane truck blends brute strength and smart practicality.Beneath the hood lies a 140 HP Yuchai diesel engine, capable of tackling all kinds of construction and hauling jobs. The three-person HOWO cab features full heating & cooling AC to keep operators comfortable all day long.
Its foldable knuckle crane lifts up to 5 tons and rotates a full 360 degrees for flexible loading & unloading. Weighing 1700 kg with a 750mm installation footprint, it installs effortlessly on truck frames. The control system supports English and other languages, friendly for international users worldwide.

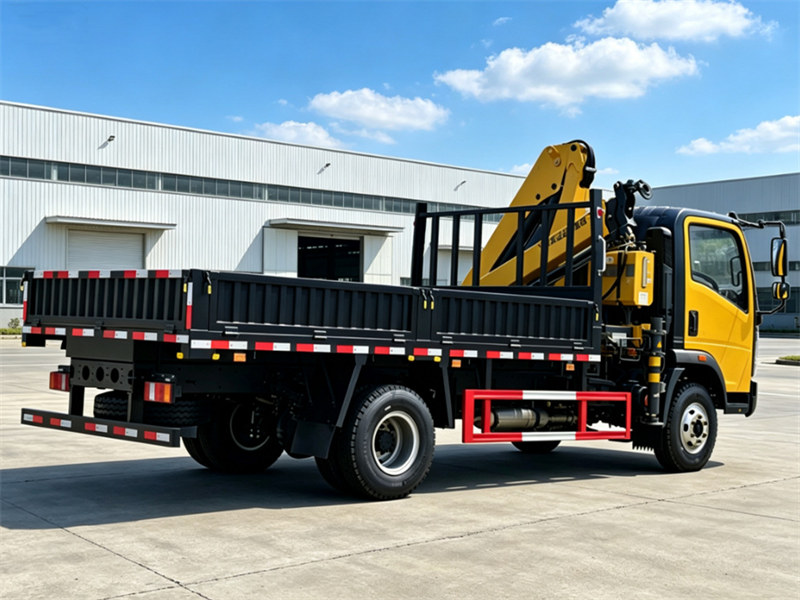

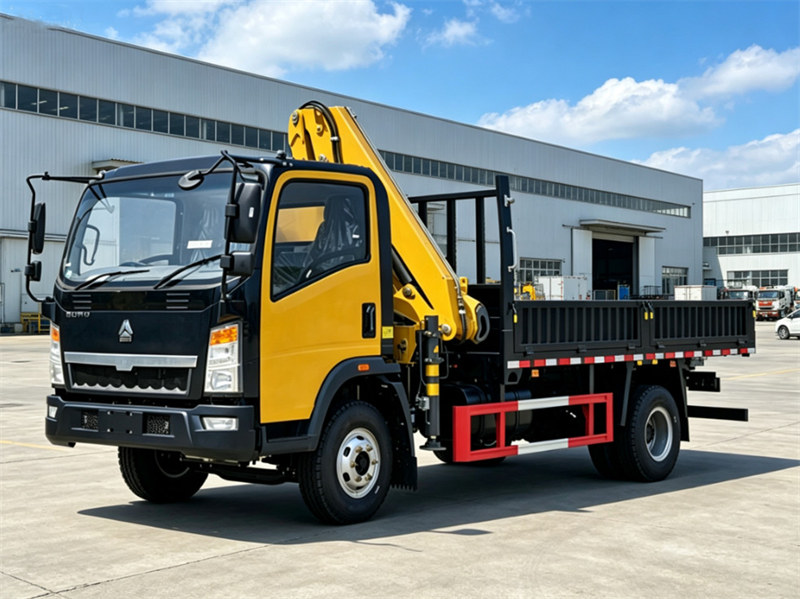

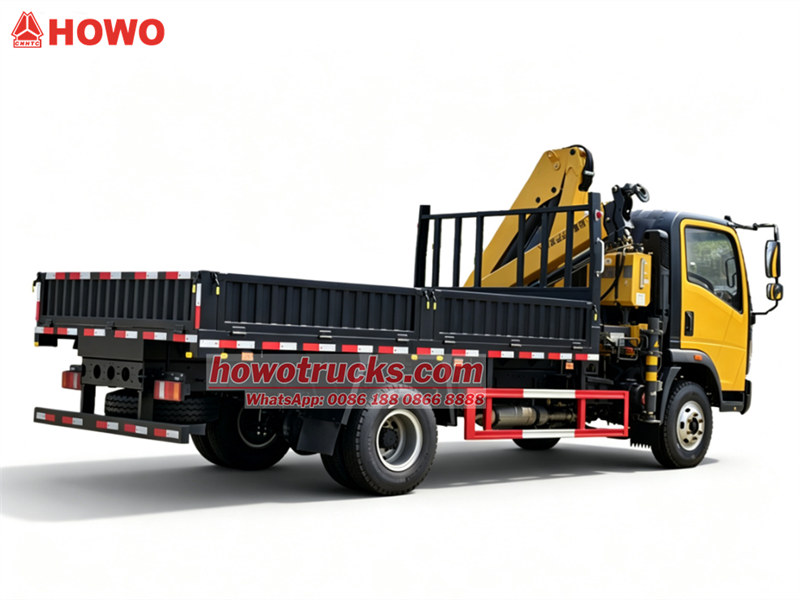

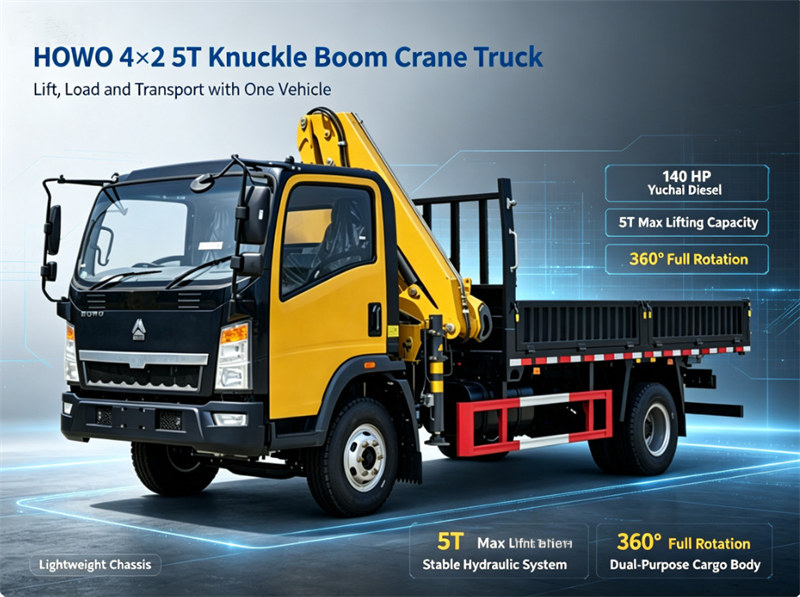

( HOWO 4x2 Heavy Cargo Truck 5T Crane )
✦Ⅰ.Product Definition and Introduction « « «
1. Truck Chassis: Sinotruk HOWO truck chassis, 4X2,4x4 model
YC model with 140HP and Euro 2,3
2. Cargo material: 5mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.
3. Crane Brand: XCMG, Palfinger, HIAB, Chusheng, etc.
4. Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.
✦ Ⅱ.Product Parameter For HOWO 10T Crane Boom Truck « « «
Best Choice,HOWO Trucks
|
HOWO Cargo Truck With Knuckle Crane |
|||
|
Overall dimensions |
6300×2500×3250(mm) |
Cargo box dimensions |
4800x2380x550(mm) |
|
Gross vehicle weight |
10,300 kg |
Rated Load capacity |
5000 kg |
|
Chassis specifications |
|||
|
Chassis Brand |
HOWO |
Color |
According to wish |
|
Engine |
Fuel Type |
Diesel |
|
|
Model |
YC4E140-33 |
||
|
Horse power |
140 HP |
||
|
Displacement |
4.257 L |
||
|
Engine Type |
4 cylinders in line, water cooling, intercooled, turbocharged |
||
|
Emission Standard |
Euro 3 |
||
|
Wheel Base(mm) |
4500 |
Driving type |
4x2 |
|
Type & Size of Tyre |
8.25R20 (6+1pcs) |
Air Conditional |
Heating and cooling air conditioning |
|
Cab |
Single-row tilted cab |
Gear Box |
WLY6TS55 6 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
Steering Wheel |
Left Hand Drive with power-assisted |
|
Crane specifications |
|||
|
Crane brand |
CS Trucks Group |
Crane weight |
2000 kg |
|
Max. lifting weight |
500 kg |
Max. working height |
8 m |
|
Max oil flow of hydraulic system |
25 L/min |
Rated pressure of hydraulic system |
28 Mpa |
|

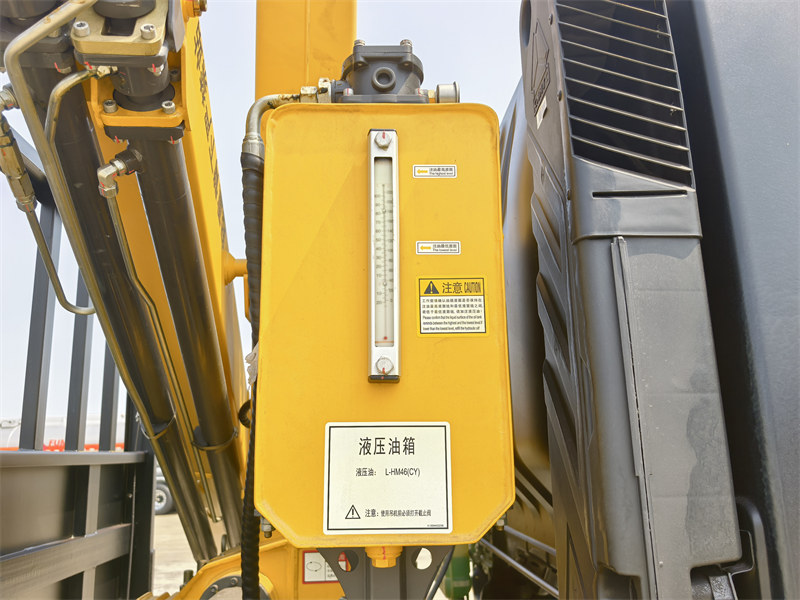

Oil tank capacity |
100 L |
Installation space |
750 mm |
|
Max. working radius |
7.92 m |
Max lifting Moment |
10.5 T.M |
|
Rotation angle |
360°, all rotation |
Boom |
3 sections |
|
Others |
|||
|
Cargo body |
High-quality steel |
Payload |
6 tons |
|
Operation Type |

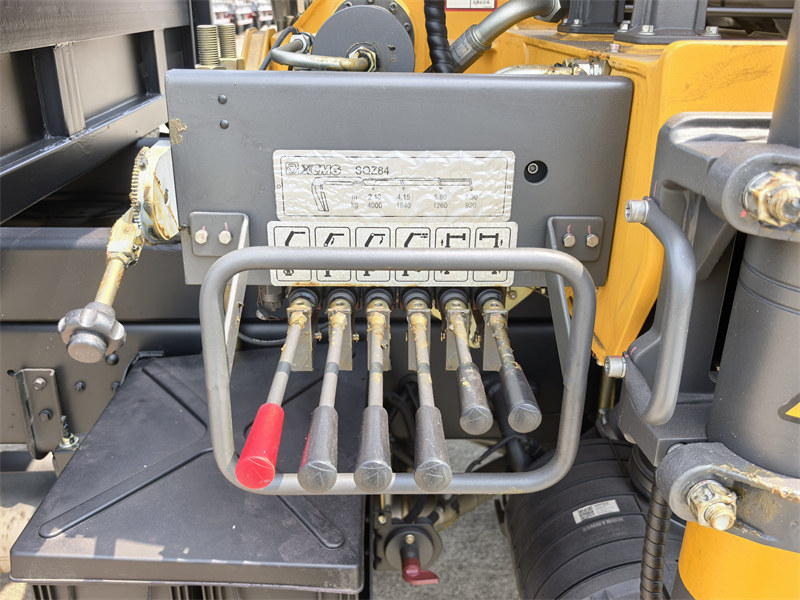

Manually operated hydraulic valve |
Type |
Mechanical |

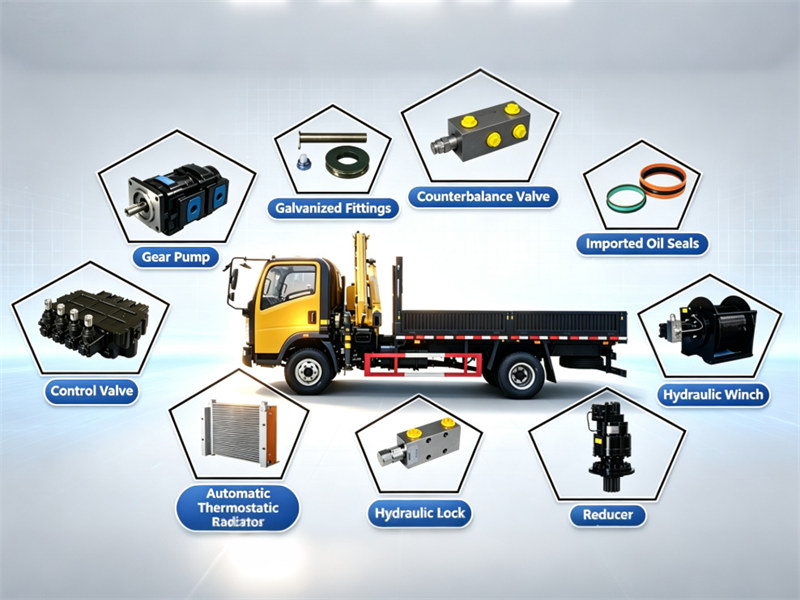

♦ 2.Control Valve Professional hydraulic control valve, precise action regulation, stable long-hour operation & automatic flow adjustment based on loads.
♦ 3.Hydraulic Lock From certified top-tier hydraulic maker (ISO & CE certified, supplier for XCMG/Lovol), stable locking performance with full hydraulic system solutions available.
♦ 4.Hydraulic Winch Welded high-strength drum; German imported disc brake springs & 20CrMnTi carburized gears; British sealing parts + load-sharing planetary reducer for heavy-load durability.
♦ 5.Galvanized Fittings Galvanized crane fittings for strong anti-rust & anti-corrosion performance, neat finish and longer service cycle.
♦ 6.Imported Oil Seals UK Hallite imported oil seals for crane cylinders, superior sealing property, leak-free operation and extended service lifespan.
♦ 7.Counterbalance Valve Anti-sinking locking design stops boom drift & slow sagging under load; enables smooth boom movement with minimal internal leakage.
♦ 8.Reducer Precision forged housing + imported disc springs & hardened 20CrMnTi gears; load-sharing planetary structure for great load capacity and reliability.
♦ 9.Automatic Thermostatic Radiator Auto temperature control high-efficiency radiator; keeps hydraulic oil cool, avoids overheating failures and lengthens service life of all hydraulic parts.

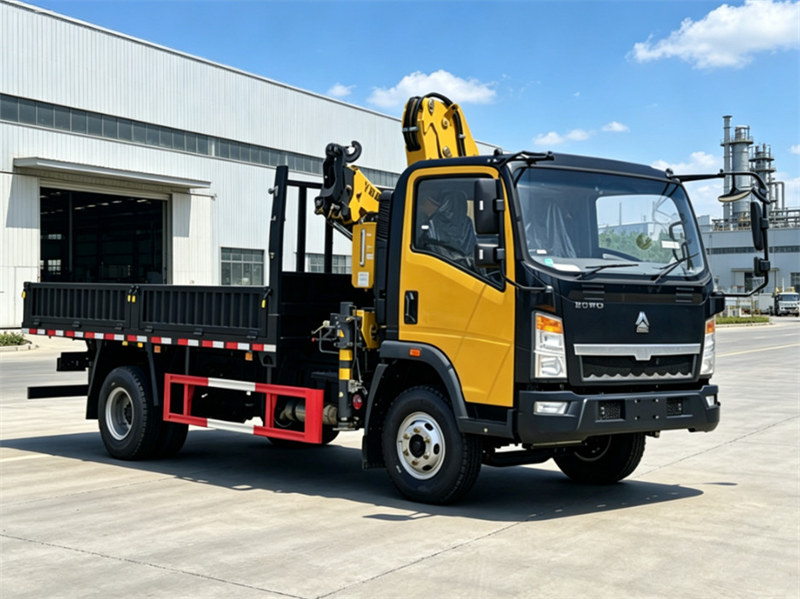

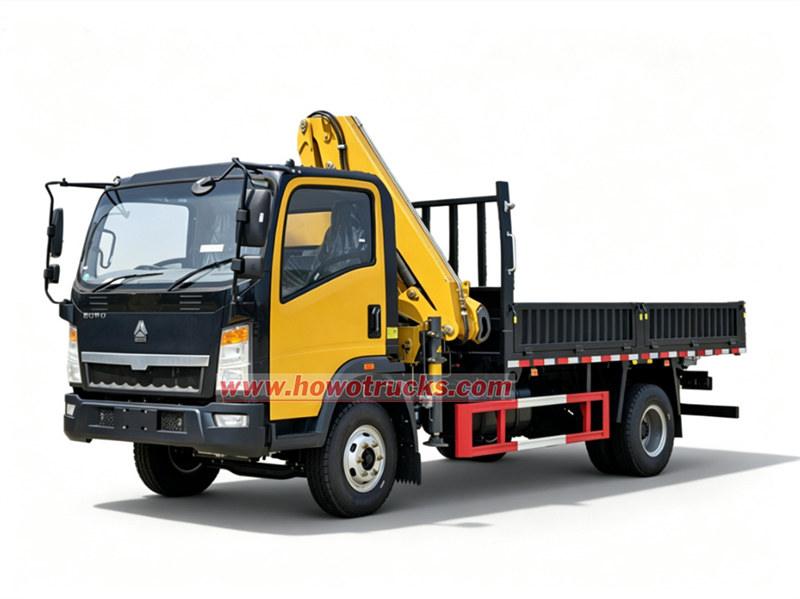

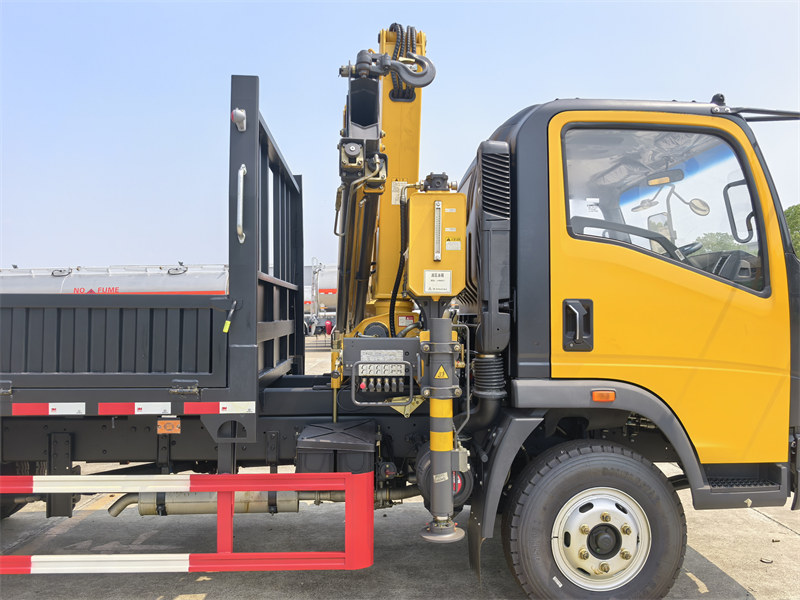

( Mian Details For The 5tons Crane )
⇓ ⇓ ⇓
|
Max. lifting moment |
10.5 T.M |
|
Max. lifting capacity |
5000 kg |
|
Max. hydraulic outreach |
8.01 m |
|
Slewing angle |
360° |
|
Slewing torque |
1.58 T.M |
|
Stabilizer spread |
5210 mm |
|
Fitting space required |
1100 mm |
|
Width folded |
2480 mm |
|
Max. operating pressure |
28 MPa |
|
Recommended pump capacity |
25L/min |
|
Dead weight |
2035 kg |

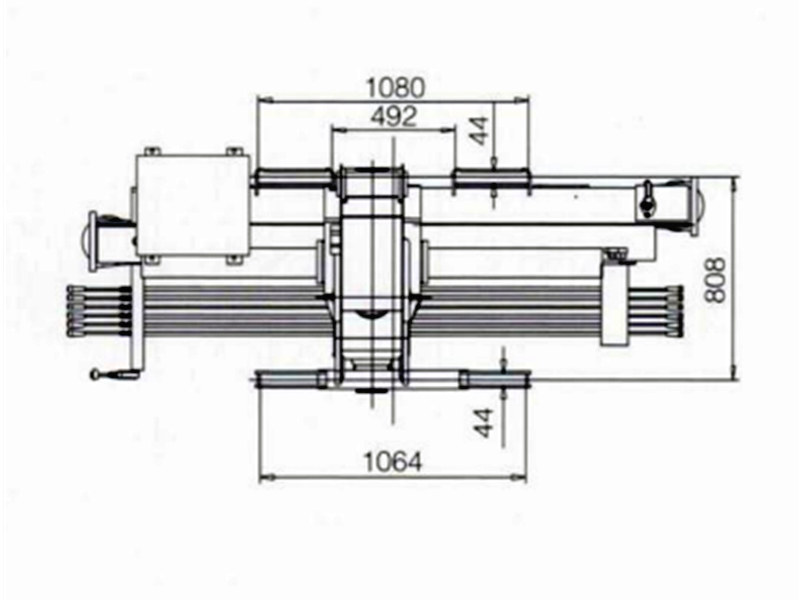

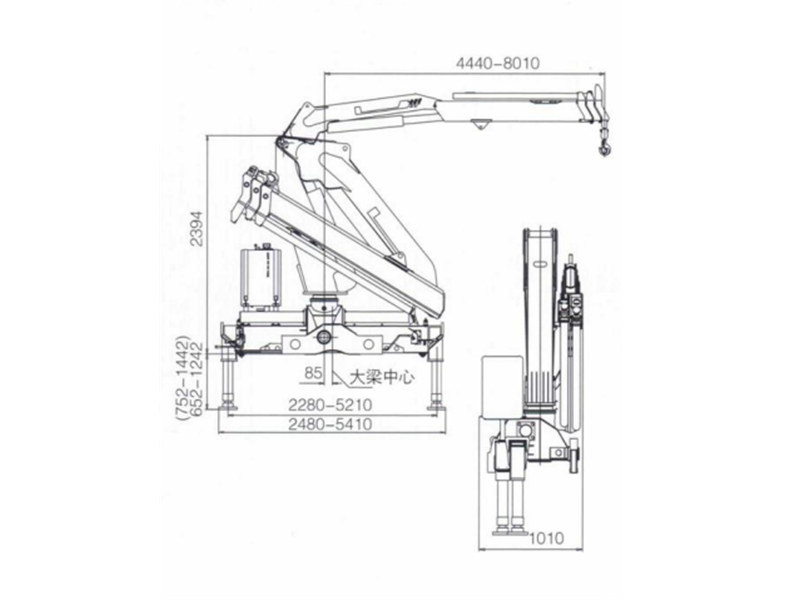

(Overall Dimentions For The Crane)
⇓ ⇓ ⇓

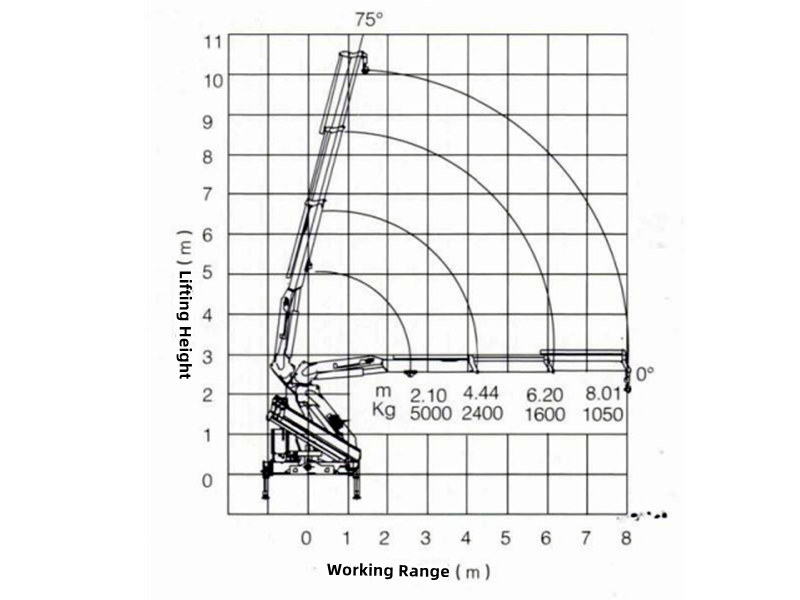

( Torque display diagram ）
⇓ ⇓ ⇓
✦ Ⅴ.Advantage For HOWO Knuckle Crane Lorry Truck « « «
1. Lightweight HOWO 4×2 Chassis, Higher Actual Payload
♦ Adopt mature HOWO lightweight chassis framework, curb weight is reasonably controlled, gross vehicle weight limited to 10300kg while achieving 5t rated loading capacity.
♦ Single-row tilt cab reduces front-end weight further, matching knuckle crane installation layout perfectly.
♦ 4-cylinder inline Yuchai 140HP turbo diesel engine delivers sufficient power without redundant weight.
2. High-Performance 3-Section Knuckle Boom Crane, Flexible & Powerful Lifting
♦ Full 360° unlimited rotary design + 7.92m maximum working radius, no dead-angle operation.
♦ Maximum working height reaches 8m, adapts to warehouse loading, construction hoisting, roadside cargo transfer multiple scenarios.
♦ Lifting moment up to 10.5 T·M, peak lifting capacity 5 tons, stable hoisting performance.
♦ Crane self-weight only 2000kg, lightweight crane structure avoids excessive occupation of chassis load capacity.
♦ Three-section folding knuckle boom shrinks greatly when folded, retains complete cargo carrying function, realize lifting + cargo transportation dual purpose.
3. Stable & Durable Hydraulic Crane System
♦ Hydraulic system rated working pressure 28MPa, matched with 25L/min rated flow, lifting action smooth without jitter.
♦ Equipped with dedicated hydraulic lock & balance valve to prevent boom slipping caused by load falling, greatly improving operation safety.
♦ Supporting imported oil seals effectively avoids oil leakage, reduces later maintenance frequency.
♦ Manual hydraulic valve control system is simple to operate, low failure rate, suitable for construction sites, mountain areas and other complex working environments lacking professional operators.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
