Introduction to the Structure and Functions of the HOWO TX 20000L Water Bowser

What is HOWO TX 20000L water tanker truck?

The Howo TX 20,000L water tanker truck is a heavy-duty environmental sanitation vehicle built on the HOWO TX 6×4 chassis, with a tank volume of 20000 liters. Featuring strong power, a large-capacity tank, and high reliability, this truck is widely used in municipal road washing, garden irrigation, industrial park dust suppression, and other applications.

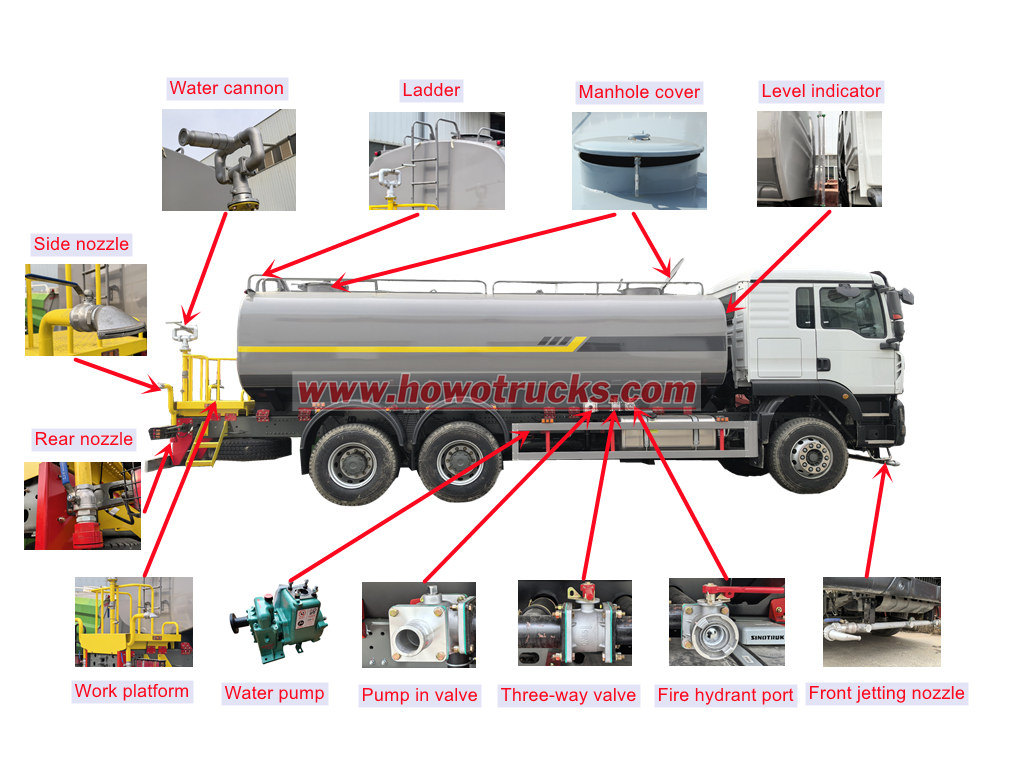

Structure of HOWO TX water bowser truck

The HOWO TX 20,000L water bowser mainly consists of the chassis, tank, pump system, sprinkling device, and control system.

Functions of HOWO water sprinkler truck

•  Front spraying nozzles: Sprinkling width ≥14 meters, capable of washing eight-lane two-way roads.

•  Rear spraying nozzles: Used for road dust suppression, width 14–18 meters.

•  Side spraying nozzles: Suitable for green belt irrigation.

•  High-pressure water cannon: 360° rotation, adjustable for straight stream, mist, heavy rain, and other patterns, with a range of up to 35 meters.

Chassis	HOWO TX, 6×4
Engine	WP10.340E22, 340HP, diesel engine
Tank capacity	20000 liters
Tank material	Carbon steel
Water pump	80QZ60/90, flow 60m ³/h
Spray width	≥14m
Water cannon range	≥35m

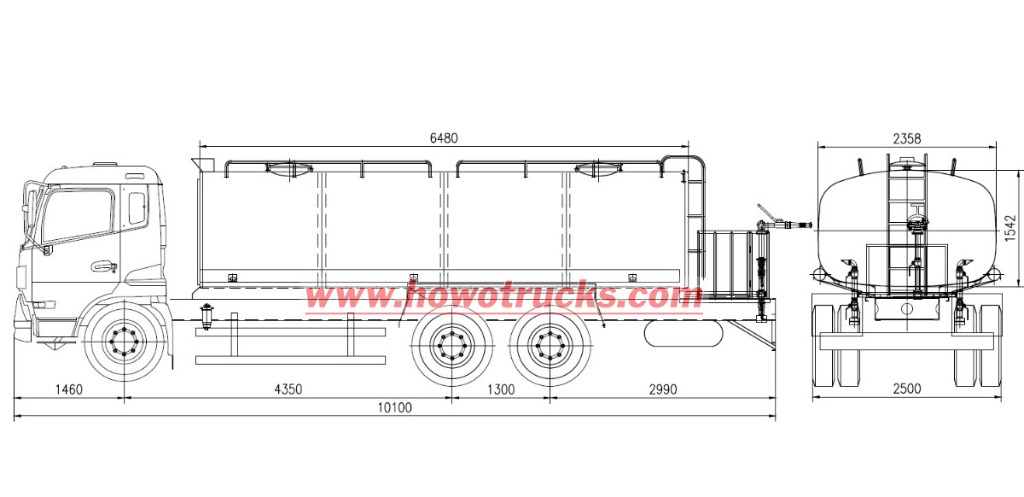

Drawing of HOWO TX 6×4 water tank lorry

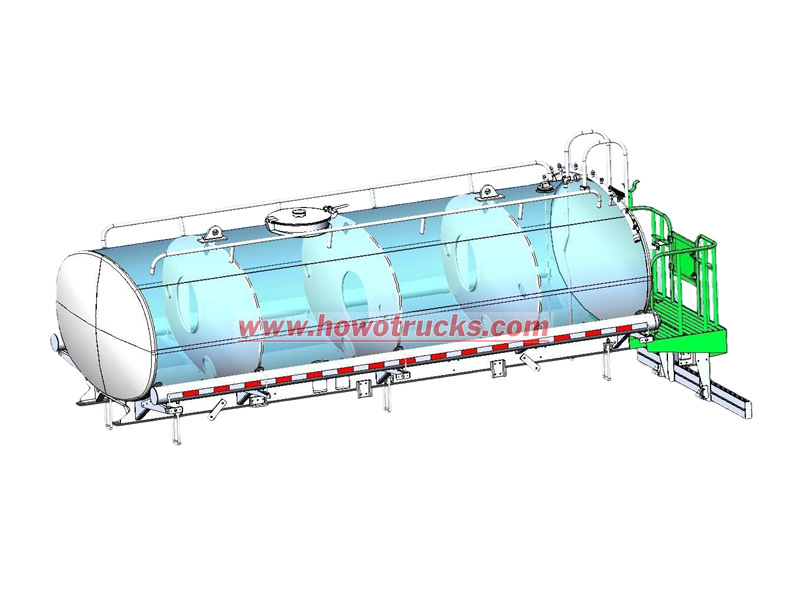

Tank design of HOWO water spraying truck

▲ Tank Volume: Effective volume of 20,000 liters.

▲ Material & Process: The tank body is made of Q235-B carbon steel, with a thickness of 4mm and thickened end covers of 5mm. It is treated with shot blasting and solvent-free epoxy coating for internal anti-corrosion, ensuring strong corrosion resistance and long service life.

▲ Baffle Design: 2–3 anti-wave baffles are installed inside to reduce liquid surge impact during driving.
